REFERENCE : 1145312
To request a quote, please log in
Benefits
- •
Enables the simple self-centring of the drill bit on the smoothest of surfaces. Significantly reduces the requried axial load.
- •
Enables maximum torque transmission Prevents the rotation of the bit in the chuck. Specially adapted for through-holes.
- •
For general use in steels and cast irons up to 950 N/mm²
- •
Suitable for strong and difficult materials. Enables a shorter and stronger cutting edge, thus prolonging the service life.
- •
Thermal shield. Allows you to increase service life, cutting speed, and progress. Reduces the axial load. General use.

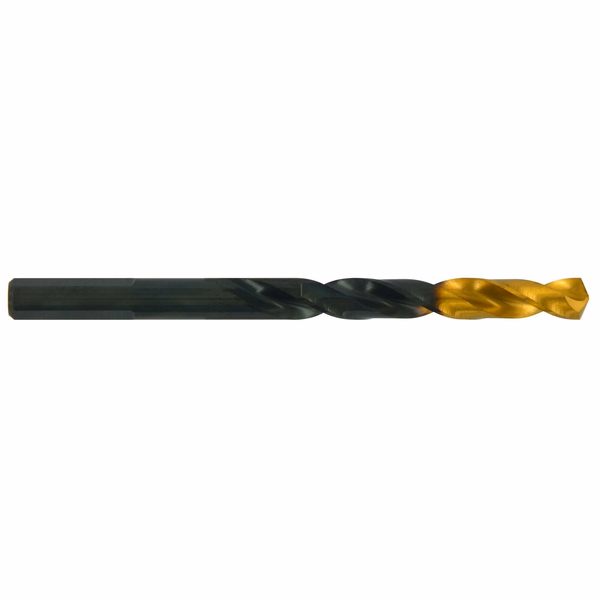

Properties
- •
Automatic centring
- •
Tri-flat shank
- •
High-speed steel
- •
135° tip
- •
TiN coating
Benefits
- •Enables the simple self-centring of the drill bit on the smoothest of surfaces. Significantly reduces the requried axial load.
- •Enables maximum torque transmission Prevents the rotation of the bit in the chuck. Specially adapted for through-holes.
- •For general use in steels and cast irons up to 950 N/mm²
- •Suitable for strong and difficult materials. Enables a shorter and stronger cutting edge, thus prolonging the service life.
- •Thermal shield. Allows you to increase service life, cutting speed, and progress. Reduces the axial load. General use.
Properties
- •Automatic centring
- •Tri-flat shank
- •High-speed steel
- •135° tip
- •TiN coating
List of items related to this product
| Code | EAN | Ø drill | Shank | Total length | Cutting length | Qty | Price | STATUS | ACTIONS |
|---|---|---|---|---|---|---|---|---|---|
| 11453120100 | 3221912096104 | 1 | 1 | 34 | 12 | 1 | 4,44 | STOCK | |
| 11453120150 | 3221912096111 | 1.5 | 1.5 | 40 | 18 | 1 | 4,52 | STOCK | |
| 11453120200 | 3221912096128 | 2 | 2 | 49 | 24 | 1 | 3,21 | STOCK | |
| 11453120250 | 3221912096135 | 2.5 | 2.5 | 57 | 30 | 1 | 3,65 | STOCK | |
| 11453120300 | 3221912096142 | 3 | 3 | 61 | 33 | 1 | 3,73 | STOCK | |
| 11453120320 | 3221912096159 | 3.2 | 3.2 | 65 | 36 | 1 | 3,95 | STOCK | |
| 11453120350 | 3221912096166 | 3.5 | 3.5 | 70 | 39 | 1 | 4,05 | STOCK | |
| 11453120400 | 3221912096173 | 4 | 4 | 75 | 43 | 1 | 4,36 | STOCK | |
| 11453120420 | 3221912096180 | 4.2 | 4.2 | 75 | 43 | 1 | 4,64 | STOCK | |
| 11453120450 | 3221912096197 | 4.5 | 4.5 | 80 | 47 | 1 | 4,68 | STOCK |
We design ingenious solutions for professionals and individuals.
Our brand relies on French and Spanish expertise as well as the development of specific industrial applications adapted to demanding environments, intensive use and innovative and complex materials (Titanium, CFRP...).
Our vocation is to meet the requirements of cutting-edge industries, construction sites, industrial maintenance (MRO) and Housing. Through our distributors, our brand is a vector of innovation, offering a wide choice to adapt to the specific needs of distribution circuit models serving different end customers: MRO, professionals and expert individuals.
Our brand is close to points of sale, in France and Spain but also in Latin America, Asia and the Pacific.
Finally, our brand is the local partner of your agencies with commercial and technical support as close as possible to the field and end users.
Coffrets

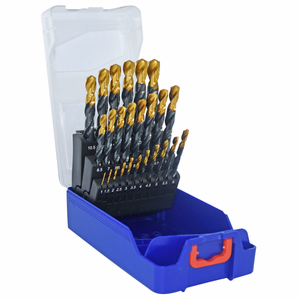

25 fully ground TiN coated HSS metal drill bits, split point - Tri-flat shank Ø 1 to 13 mm
Reference: 11453170017
10 fully ground TiN coated HSS metal drill bits, split point - Tri-flat shank Ø 1 to 10 mm
Reference: 11453170001

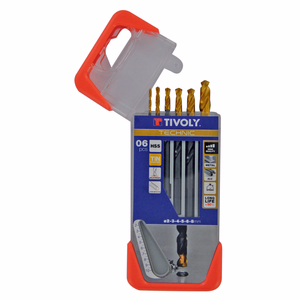

6 fully ground TiN coated HSS metal drill bits, split point - Tri-flat shank Ø 2 to 8 mm
Reference: 11453170002

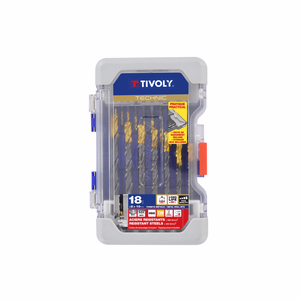

18 fully ground TiN coated HSS metal drill bits, split point - Tri-flat shank Ø 2 to 10 mm
Reference: 11453170006
