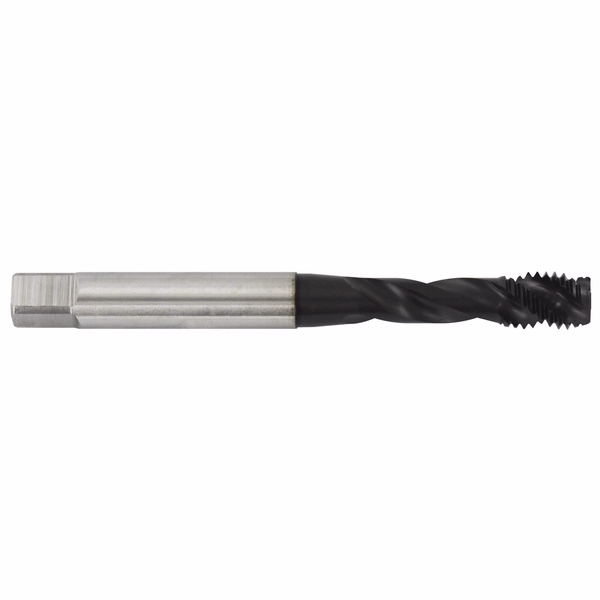

REFERENCE : 960MV51
Benefits
- •
Allows better heat resistance due to better chip evacuation. For blind holes.
- •
Low friction coefficient. Excellent chip evacuation. Increased tool life.
Properties
- •
Spiral flute
- •
HC PLUS coating
Benefits
- •Allows better heat resistance due to better chip evacuation. For blind holes.
- •Low friction coefficient. Excellent chip evacuation. Increased tool life.
Properties
- •Spiral flute
- •HC PLUS coating
List of items related to this product
| Code | EAN | Thread pitch system | Ø tap | Pitch | Norm | Drilling | Total length | Cutting length | L4 tap length | Ø square | Qty | Price | STATUS | ACTIONS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 960MV5100300050 | 3221912267054 | M | 3 | 0.5 | DIN 371 | 2.5 | 56 | 5 | 2-3 | 2.7 | 1 | 40,40 | ON ORDER | |
| 960MV5100400070 | 3221912267061 | M | 4 | 0.7 | DIN 371 | 3.3 | 63 | 7 | 2-3 | 3.4 | 1 | 40,40 | ON ORDER | |
| 960MV5100500080 | 3221912267078 | M | 5 | 0.8 | DIN 371 | 4.2 | 70 | 9 | 2-3 | 4.9 | 1 | 41,53 | ON ORDER | |
| 960MV5100600100 | 3221912267085 | M | 6 | 1 | DIN 371 | 5 | 80 | 10 | 2-3 | 4.9 | 1 | 42,63 | ON ORDER | |
| 960MV5100800125 | 3221912253194 | M | 8 | 1.25 | DIN 371 | 6.75 | 90 | 12 | 2-3 | 6.2 | 1 | 49,14 | ON ORDER | |
| 960MV5101000150 | 3221912267115 | M | 10 | 1.5 | DIN 371 | 8.5 | 100 | 14 | 2-3 | 8 | 1 | 61,73 | ON ORDER | |
| 960MV5101200175 | 3221912267122 | M | 12 | 1.75 | DIN 376 | 10.25 | 110 | 16 | 2-3 | 7 | 1 | 85,96 | ON ORDER | |
| 960MV5101400200 | 3221912267092 | M | 14 | 2 | DIN 376 | 12 | 110 | 18 | 2-3 | 9 | 1 | 113,26 | ON ORDER | |
| 960MV5101600200 | 3221912267108 | M | 16 | 2 | DIN 376 | 14 | 110 | 22 | 2-3 | 9 | 1 | 126,39 | ON ORDER |
